Description
Features
- Decoding & Display
- 4*HDMI@1080P; HDMI1 and HDMI3 support 4K
- 4*VGA output, 4*BNC output
- Supports PS, RTP, TS, ES encapsulation formats (in platform running mode)
- Supports NTSC & PAL video formats
- H.265 HP/MP/BP and H.264 HP/MP/BP
- 8CH 8MP/5MP@30fps or 16CH 4MP/3MP or 32CH 1080P@30fps or 64CH 720P@30fps or 128 CH D1 or lower @30fps
- G.711A/G.711U audio compression
- 1CH audio input; 4CH audio output
- 1CH two-way audio
- Stream Mode
- A&V streams can be acquired actively and passively
- A&V streams can be directly acquired from TVT IPC/DVR/NVR by SDK private protocol
- A&V streams can be acquired form NVMS platform or encoding devices by RTSP/ RTP protocol
- A&V streams can be acquired from IPC by ONVIF protocol Device Management
- Supports multi-level device control (master-slave mode)
- A maximum of 64 decoders can be manageable
- Decoding Control
- Supports live view and playback decoding
- 1/4/9/16/25/36 screen display mode
- Window opening, roaming
- View cameras or camera groups in sequence
- Access
- Provides HTTP API protocol for the third-party
- Supports platform running mode and device running mode
- Operation and Maintenance
- Supports device search
- Supports WEB client access, configuration and management
- Supports time zone, time and date settings
- Supports data port and HTTP port settings
- Supports data backup and restoration
- Supports remote reboot and one-button reset
- Supports online and U-disk upgrade
- Supports dual gigabit Ethernet ports, load balancing

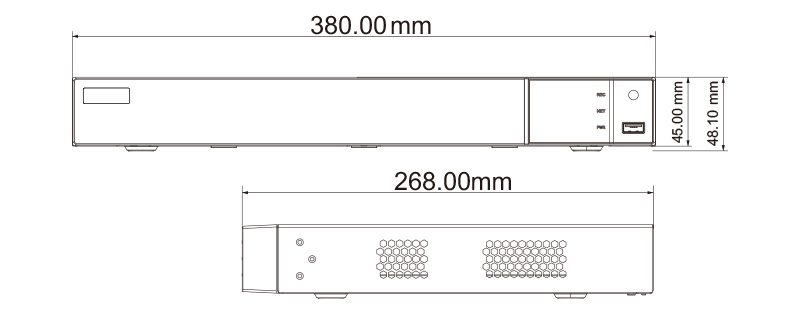

Dimension
