TD-S336E-E

TD-S336E-E is a 36-disk enterprise mass storage server specially designed for video surveillance industry. It adopts the latest intel C232 chipset, integrated intel Xeon E3-1220V5 high-performance multi-core processor and assorted advanced data processing and transmission technologies. Due to its low cost, simple deployment, flexible expansion, powerful performance, user-friendly interface design, good compatibility and high reliability, abundant data storage and strong management capability, it can meet the requirements of different large and medium sized video surveillance systems.

It can be widely used in security cities and intelligent cities, including banking, transportation, public security, enterprise and public institution and so on.

Categories: ,

Description

Features

  • High Performance
  • Integrated Intel Xeon E3-1220V5 high-performance 4 core processor, up to 8GT/s data transfer rate, 64 bit expansion, I/O acceleration, Turbo,  Hyper-Threading Technology
  • 4 memory card slots, up to 64GB DDR4-1866/2133MHz ECC
  • 2 gigabit Ethernet ports; supports I/OA technology; supports link aggregation and binding redundancy; supports iKVM;IPMI×1
  • 6Gbps SAS Expander, 16Gbps RAID card (RAID0,1,5,6 supported)
  • High Reliability
  • 36 *3.5 inch hot-pluggable HDD slots and 1 built-in 2.5 inch HDD slots, up to 360TB
  • 1200W 1+1 redundant power supply
  • Support hot backup (fail-over) via the management server
  • Easy to Manage
  • Monitoring various status of the storage server, such as connection status, network status, hardware status and so on; judging the fault level according to the buzzer sound; timely recording event information and operation logs of the device; providing full solution of real-time monitor and alarm of the device Independent IPMI interface; supports iKVM, remote startup and shutdown and software installation services
  • Provide TPM interface which supports TPM standard security chip, so that the device can be protected effectively in case of the illegal user access
  • Embedded device access and transfer modules without extra transfer server access
  • Its transfer server doesn’t rely on platform, so the recording will not be interrupted even if the network of the platform server is disconnected

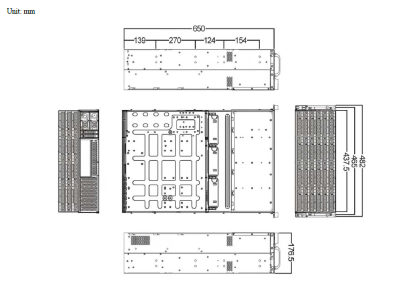

Dimension

TD-S336E-E
