TD-3104B1H/TD-3108B1H

TD-3104B1H/TD-3108B1H

TD-3100B1H series is meticulously crafted to accommodate high-definition IP video inputs, spanning resolutions from 8MP down to 720P, distributed across either 4 or 8 channels. Leveraging state-of-the-art SOC technology, this series ensures the recording of high-definition footage on each channel, contributing to a resilient and consistently reliable system performance.

TD-3100B1H series supports either 4 or 8 CH IP inputs, allowing for the simultaneous playback of footage on the corresponding number of channels and boasts a 4K ultra-high-definition display. This adaptable product line is well-suited for a wide array of security applications, finding relevance in home security, financial institutions, commercial establishments, enterprises, transportation systems and government facilities.

Comparer

Description

Features

  • Support 4/8 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/DI/CIF IP input
  • Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
  • Playback : 4 /8CH simultaneous playback
  • Search : time slice, time, event, tag, smart search
  • Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video tampering, etc.
  • Support POS information overlay on live view and playback
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log view and device status view
  • 4K output, true high resolution display
  • Support NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smart phones with iOS and Android OS

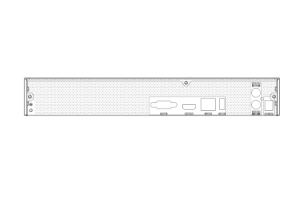

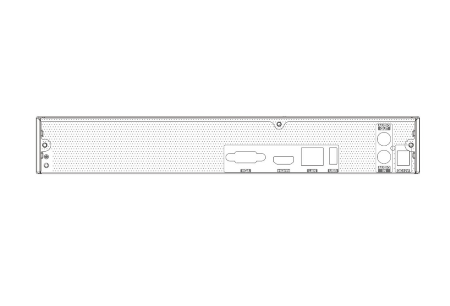

Dimension

td-3104b1h-td-3108b1h--

TD-3100B1H Dimension
