TD-3104H1-B1/TD-3108H1-B1/TD-3116H1-B1

TD-3104H1-B1/TD-3108H1-B1/TD-3116H1-B1

TD-3100H1-B1 series supports 4/8/16 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P high definition IP video input, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.

TD-3100H1-B1 series supports 4/8/16 CH IP input, simultaneous 4/8/16 CH playback, and 4K ultra high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

Description

Features

  • Support 4/8/16 CH  8MP/6MP/5MP/4MP/3MP/1080P/ 1280×1024/960P/720P/960H/DI/CIF IP input
  • H.265S/ H.265+/ H.265/ H.264 coding
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timed / motion / sensor/ POS/ AI recording
  • Playback : 4 /8/16CH simultaneous playback
  • Search : time slice, time, event, tag, smart search
  • Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
  • Support POS information overlay on live view and playback
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web Client or CMS : preview, playback, backup, PTZ  and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Authorization management, log view and device status view
  • 4K output, true high resolution display
  • Support NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smart phones with iOS and Android OS

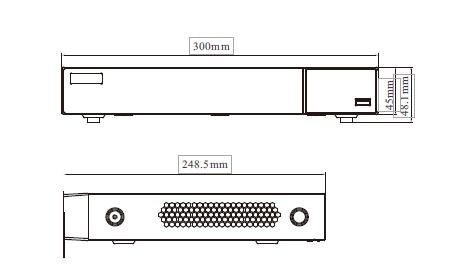

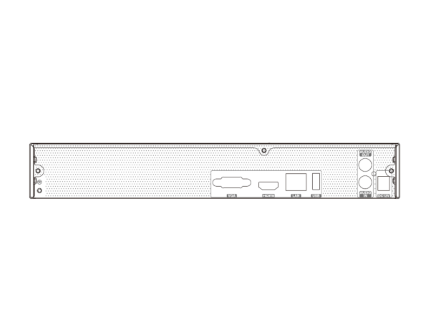

Dimension

TD-3104H1-B1/TD-3108H1-B1/TD-3116H1-B1



TD-3104H1-B1/TD-3108H1-B1/TD-3116H1-B1
